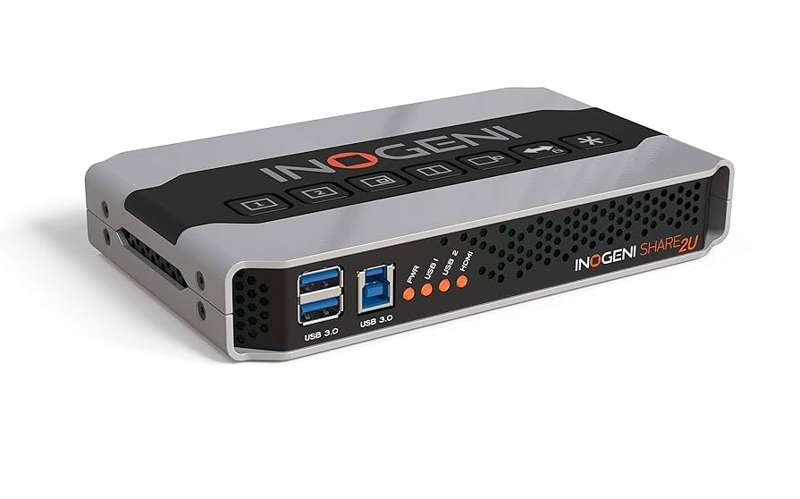

INOGENI SHARE2U Mix 2 USB or HDMI cameras to USB 3.0

SHARE2U: Mix 2x USB 2.0 or HDMI Cameras to USB 3.0 and HDMI + PTZ Control

The INOGENI SHARE2U is a versatile and easy-to-use camera mixer that combines two video sources—USB 2.0 or HDMI—into a single video stream. With built-in Picture-in-Picture (PiP) and side-by-side layouts, it’s ideal for HyFlex classrooms, collaborative meetings, webinars, and live streaming.

Key Features

• Mix two cameras from three input sources (2x USB 2.0 and 1x HDMI)
• Supports up to 14 customizable video layouts including PiP and side-by-side
• Switch camera sources and layouts without interrupting the video stream
• Output options:
  • Uncompressed video via USB 3.0
  • MJPEG video via USB 2.0
• PTZ camera control via USB HID, RS-232, or LAN
• Manual control via built-in keypad
• Compatible with Q-SYS Core processors
• No drivers required—plug-and-play simplicity
• Designed and manufactured in Canada
• TAA-compliant

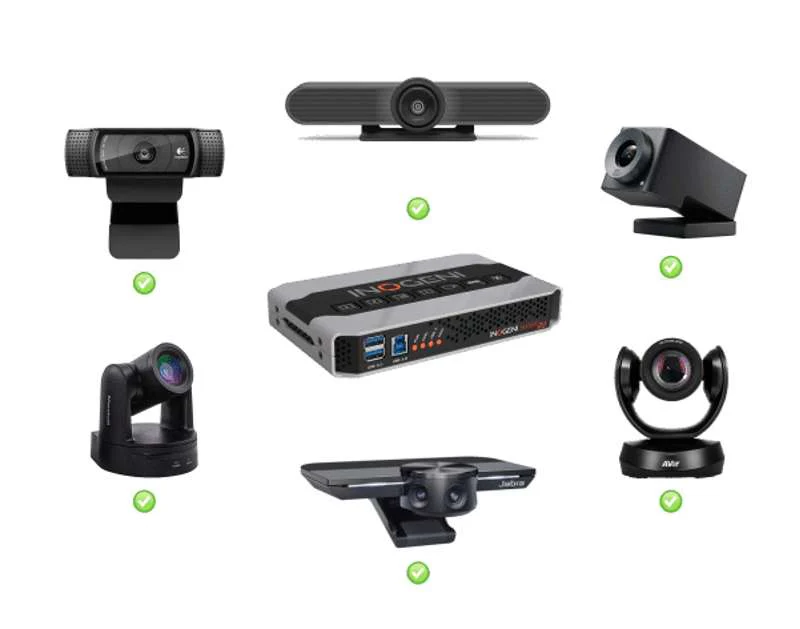

Compatibility

• Fully compatible with Logitech UC cameras and CODECs
• Logitech-tested cameras: Rally, Rally Bar series, MeetUp, MeetUp 2, Scribe, and consumer models
• Logitech UC CODECs: Rally Bar (Appliance Mode), Roommate for MTR and Zoom Rooms
• Compatible with Barco ClickShare Conference (CX-20, CX-30, CX-50)

What’s in the Box

• 1x USB 3.0 cable (Type-A to Type-B, 1 m / 3.3 ft)
• 1x RS-232 terminal block adapter
• 1x Power supply (100–240 VAC, 50/60Hz to 12V/1.2A DC)
• International power adapters (AUS, EUR, UK, US)

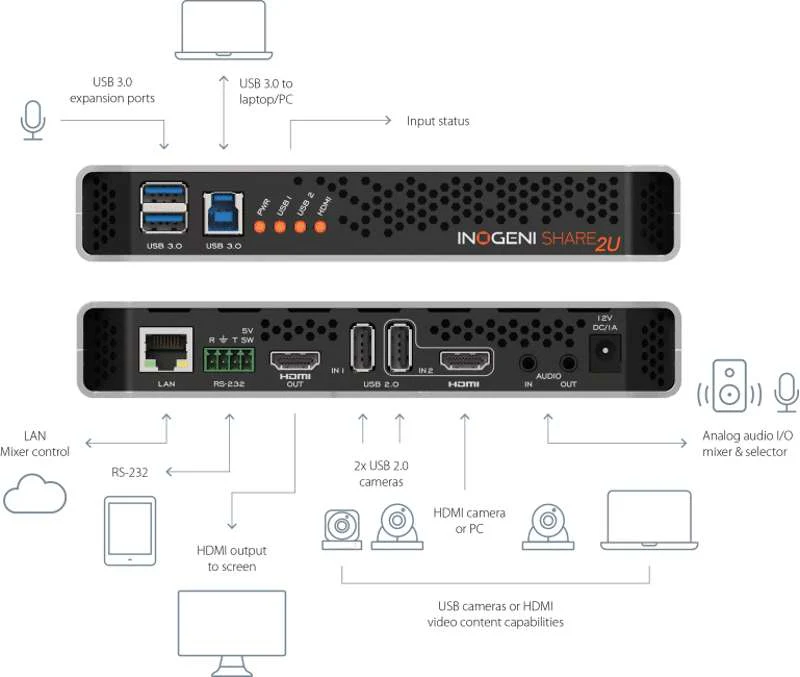

How It Works

The SHARE2U mixer allows you to combine and control two video sources from USB or HDMI inputs. It can be managed through software on the host computer using USB HID, RS-232, or LAN interfaces. For quick adjustments, users can also operate the device manually using the built-in keypad.
